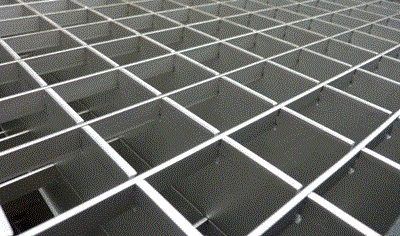

STAINLESS GRATINGS
Stainless steel gratings are manufactured similarly to welded and pressed gratings. They are made of stainless steel (for example steel grade 1.4301) is with enhanced physical and chemical properties, and is resistant to corrosion caused by such factors as weather conditions (gas corrosion), diluted acids, alkaline solutions (corrosion in liquids). These special material properties allow to use such platform gratings in acidic environments.
STAINLESS STEEL GRATING - CHARACTERISTIC
- Products comply with DIN 24537
- Steel grade:
- X5CrNi18-10
- X2CrNiMo17-12-2
by PN-EN 10088-1:2005. - Grating panels are fabricated in negative tolerances (+0 do -4 mm)
Stainless gratings are used in: canteen kitchens, the food processing industry, chemical industry, laboratories, hospitals, swimming pools, sewage works, breweries and the dairy industry.
DIMENSIONS OF TECHNOLOGY FOR STAINLESS GRATING
| BEARING-BAR DIMENSIONS | Height [mm] | 20; 25; 30; 35; 40 | |
| Thickness [mm] | 2; 3 | ||
| CROSS-BAR DIMENSIONS | Height [mm] | 9 | |
| Thickness [mm] | 2 | ||
| MESH SELECTIONS | Mesh dimensions (space between bearing bars) | 16; 22; 33; 44; 55; 66; 77; 88; 99 and other | |
| Mesh spacing (space between cross bars) | 11; 22; 33; 44; 55; 66; 99 | ||
-
MAXIMUM SIZE OF GRATING PANEL:
lenght: L = 2000 mm x width: B = 1500 mm
-
SERRATED PRESSURE-LOCKED ANTI-SLIP GRATING
- serrated bearing bars: thickness 2 or 3 mm, for mesh dimensions see product range
- serrated bearing bars and cross bars: for mesh dimensions 33x33 mm
-
SAMPLE MARKING
symbol / mesh / bearing bar / external panel dimensions / number of pieces KW V2A / 33 x 33 / 30 x 2 / L=800 x B=1200 / 9 szt. ST V2A / 33 x 33 / 25 x 2 / L=600 x B=240 / 6 szt.
